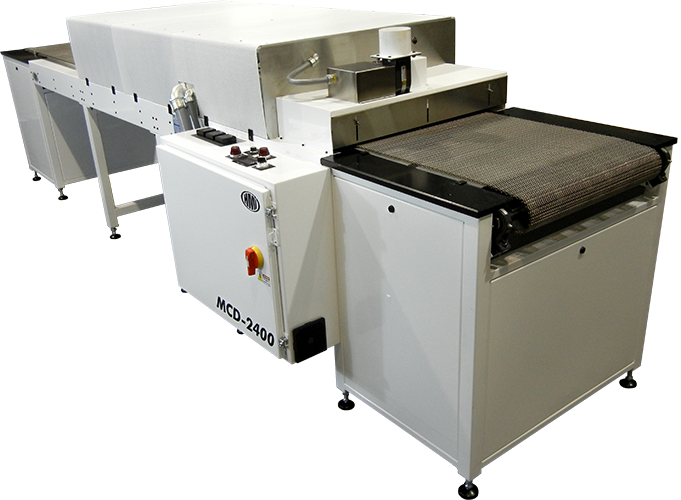

MCD Infrared (IR) Dryer

MCD Infrared (IR) Dryer

The HMI MCD Series IR Dryer is available with a 14", 24" or 36" stainless steel belt. It has our standard black body heaters, which are capable of a maximum 210°C. Programmable set point controllers and reliable mechanical elements, such as stainless steel wear trays, are standard in the MCD model series of dryers, as well.
  • playlist_add_check Features
    All HMI IR Dryers can be configured to accommodate the varying demands of the process. Custom length heat zones, cooling zones and open belt zones can be mixed and matched to precisely meet the thermal profile recommended for the paste.

    Highlights:

    • Black Body (5µm) Heaters
    • Set Point Temperature Controllers
    • Programmable Over and Under Temperature Alarms
    • Stainless Steel Belt
    • Heat Zones in Length Increments of 2' / 610mm
    • Perforated Safety Shrouds

    Options:

    • Open Bed Sections in Length Increments of 2' / 610mm
    • Cooling Zones in Length Increments of 2' / 610mm
    • Forced Air Variable Speed Cooling Fan
  • image Photos
    No additional images available at this time. Please check back later.
All HMI IR Dryers can be configured to accommodate the varying demands of the process. Custom length heat zones, cooling zones and open belt zones can be mixed and matched to precisely meet the thermal profile recommended for the paste.

Highlights:

  • Black Body (5µm) Heaters
  • Set Point Temperature Controllers
  • Programmable Over and Under Temperature Alarms
  • Stainless Steel Belt
  • Heat Zones in Length Increments of 2' / 610mm
  • Perforated Safety Shrouds

Options:

  • Open Bed Sections in Length Increments of 2' / 610mm
  • Cooling Zones in Length Increments of 2' / 610mm
  • Forced Air Variable Speed Cooling Fan
